NINGBO TIGERLEVEL MACHINERY INDUSTRIAL CO.,LTD
(TIG brand manufacture )
 |
| Place of Origin: | CHina |
| Brand Name: | Real TIG ，NB TIG |
| Certification: | ISO 9001 |
| Model Number: | 332/C4388 |
| Minimum Order Quantity: | 2tons |
|---|---|
| Price: | 1.1-15USD/kg FOB Ningbo |
| Packaging Details: | wooden case |
| Delivery Time: | 35-40days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs per month |
| Material: | Alloy Steel | Hardness: | 48-52HRC |
|---|---|---|---|
| Impact Value: | >15J | P/N: | 332/C4388 |
| Side Cutter: | 332/C4389 332/C4390 | Color: | Yellow , Black |
| High Light: | 332-C4390 Tooth Point,JCB Excavator Rock Bucket Teeth,Excavator Rock Bucket Teeth Point |
||

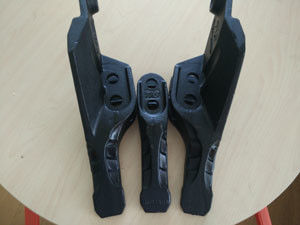

JCB ROCK bucket teeth / tooth point for JCB 3CX 4CX
bucket teeth332/C4388 2.5kgs /2.2kgs
Double Flange side cutter 332/c4389 332/c4390 4.75kgs /5.3kgs
Usage : Digging Earth
JCB standard TOOTH
53103205 53103208 53103209
Weight:2.15/ 4.7kgs
package details
| JCB TEETH AND SIDE CUTTERS | |||
| P/N | TYPE | U/W KG | Model |
| 531/03205 (23mm) | CENTER TOOTH | 2.15 | JCB 2CX/3CX |
| 531/03205 (23mm) | 2.3 | JCB 2CX/3CX | |
| 2.8 | JCB 2CX/3CX | ||
| 531/03206 | S/F SIDE CUTTER | 4.5 | JCB 2CX/3CX |
| 531/03207 | 4.5 | JCB 2CX/3CX | |
| 531/03208 (23mm) | D/F SIDE CUTTER | 5 | JCB 2CX/3CX |
| 531/03209 (23mm) | 5 | JCB 2CX/3CX | |
| 531/03208 | D/F SIDE CUTTER (4 holes) | 5.5 | JCB 2CX/3CX |
| 531/03209 | 5.5 | JCB 2CX/3CX |
standard wooden case 1050*710*840mm
·A comprehensive range is available to suit:
cat Komatsu , Daewoo , ,Hensley,Hitachi, H & L,Hyundai,· Volvo
· JCB.· Bofors· John Deere· Case· Kobelco· Liebherr
· Bobcat
Casting is a manufacturing process by which a liquid material is usually poured into a mold, which contains a hollow cavity of the desired shape, and then allowed to solidify. The solidified part is also known as a casting, which is ejected or broken out of the mold to complete the process. We use the precision casting /lost wax casting to product our bucket teeth
Casting Bucket Teeth
Material 1# Hardness :48-52HRC Impact Value :>15J
Material 2# Hardness :48-52HRC Impact Value :>20J
welcome for quotation !
